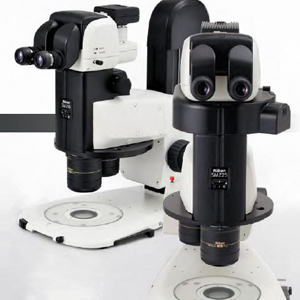

SMZ25/18 |
 |
• World's highest zoom ratio of 25:1 for a range from 0.63X to 15.75X
• Distortion has been reduced and chromatic aberration corrected to a high degree, resulting in stereoscopic images that appear natural-looking right out to the periphery.
As of January 2000 for a zoom ratio in stereoscopic microscopes (Patent pending)
quality and flexibility. |
|
| SMZ1000
|
 |
• Employs high magnification (0.8 - 8X) and high zoom ratio (10X zoom), allowing observations in a wide range of total magnification from 4X to 480X
• The Plan Apo 1X objective with high NA of 0.1 and high resolving power of 300 lines/mm is used.
Total magnification depends on the combination of eyepiece and objective used.
|
|
| SMZ800
|
 |
• Standard binocular eyepiece tube is inclined 20° for observation in a natural posture with a straight back.
• Ergonomic objective has been newly developed so that the eye level can be continuously adjusted without affecting the magnification and working distance.
• You have the option of using a wide variety of accessories designed for Nikon's stereoscopic microscopes.
|
|
| SMZ745T/SMZ745
|
 |
The SMZ745/745T boasts a 7.5x zoom that incorporates the Greenough optical system. The zoom range of 0.67x to 5x provides a broad observation range. As well as high zoom ratio and magnification, the SMZ745/745T offers a long 115 mm working distance.
The SMZ745T incorporates an optical path switching lever that enables easy switchover between eyepiece and camera. A Nikon Digital Sight series camera can be attached.
The airtight, anti-mold, anti-electrostatic design makes the SMZ745 suitable for use in a range of working environments.
The SMZ745T has an anti-mold, anti-electrostatic design
|
|
| SMZ445/SMZ460
|
 |
• Compact design with ease-of-use and high optical performance
• Lightweight optics thanks to the use of porro-mirror
• ESD protection guards against electrostatic damage to sample
• The SMZ445 has a 45°eyepiece tube inclination, and the SMZ460 has a 60° eyepiece tube inclination, which is ideal for embedded use.
|
|
