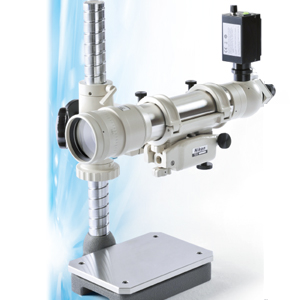

Autocollimator 6B/6D
Half Second Measuring Accuracy
- Readings of angular displacement of 0.5 second of arc using an easy-to-read large-diameter micrometer drum.

70mm Aperture Lenses
The 6D employs a 70mm aperture lens to product clear, reflected images. It also features extremely accurate double line reticles for improved detection.

Viewfield Diagram
- The 6D Autocollimator makes high-precision measurements simultaneously on two axes with the darkfield technique. It projects a bright crossline and Nikon's most popular model because the bright-line cross is the easiest to see.
Autocollimator Accessories
Autocollimator Mirror B

Reflective surface effective diameter (both sides): 70mm Distance between the flat mirror base's feet: 100mm Permanent magnet: removable; with On/Off grip
Autocollimator Mirror D

Reflective surface effective diameter (both sides): 42mm Distance between the flat mirror base's feet: 100mm
Autocollimator Mirror C

Outside diameter: 30mm
   Thickness: 12mm
   Parallel level: 2"
Autocollimator Mirror E

Length: 50, 100, 200mm types available
Octahedral Mirror

Guaranteed accuracy: 1"against corrected values
   Outer diameter: 117mm
   Center hole diameter: 20mm
   Thickness: 46mm
Dodecahedral Mirror

Guaranteed accuracy: 1"against corrected values
   Outer diameter: 117mm
   Center hole diameter: 20mm
   Thickness: 46mm
Pentagonal Prism

Guaranteed accuracy (optical perpendicularity: 2"
   Dimensions; 65 x 65 x 45mm
Mirror Adapter

Length; 50, 100, 200mm types available
