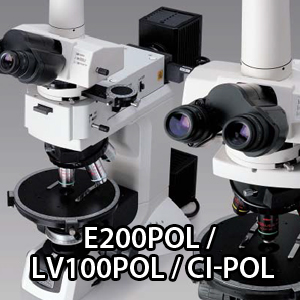

| POL(Ci-POL) |
 |
A compact polarizing microscope that balances optical performance and ease of use
TSlim and compact, the Eclipse Ci is a personal-type polarizing microscope that doesn't occupy your entire desk. With cutting-edge CFI60 infinity optics, it offers advanced optical performance and user-friendly operation.
|
|
 |
Nosepiece uses the same DIN standard compensator slot design as LV100POL to accept various compensators for advanced quantitative measurements. * All five objectives are centerable
|
|
 |
The intermediate tube incorporates a Bertrand lens, enabling both observation and capture of conoscopic and orthoscopic images.
|
|
The industry-acclaimed infinity optics - the CFI60 system - successfully deliver long working distances and high NA and produce tack-sharp aberration-free images.
The episcopic objectives use eco-glass that is totally free of environmentally harmful substances such as lead and arsenic.
|
 .
|
Focus stroke has been improved to 30mm, facilitating observation of tall samples.
Clamp-type upper limit focusing mechanism makes for easy and safe sample exchange.
Excellent cost effective and precision manufacturing is balanced with superb basic performance in a standard level polarizing
|
| Diascopic/Episcopic illumination type |
|
Both diascopic and episcopic polarizing observation are possible by mounting the LV-UEPI universal epi-illuminator. Switching the illumination technique is a simple operation.
The epi-illuminator uses the high-intensity 50W lamp as standard which provides brighter illumination than a conventional 100W lamp.
|
|
| POL(E200POL) |
 |
A compact polarizing microscope that balances optical performance and ease of use
The E200POL features an extremely compact body that takes up little space on your desk. And because the E200POL's design is based on the Eclipse E200 biological microscope, it shares the same objectives and uses many of the accessories created for higher-grade Eclipse series microscopes.
- A 1/4 Lambda and first order red tint plate combined on one slider is available.
- The precision, centerable rotating stage features a vernier capable of reading to 0.1°.
- The intermediate tube with a Bertrand lens lets you observe conoscopic images.
- A daylight-type blue filter and GIF filter are available.
|
|
Robust, vibration-resistant construction
For even greater cost performance, the E200POL Basic Set is also available: E2-TB Binocular Tube or E2-TF Trinocular Tube can be selected. Their eyepoint height can be raised 34mm by simply swinging the front part of the tubes up 180°. Eyepiece lens: CFI E 10X (F.O.V. 20mm)
|
| ECLIPSE LV100POL |
|
Outstanding optical performance, perfect for a wide varietyof imaging applications and polarizing techniques Accomplishes advanced polarizing microscopy under both diascopic and episcopic illumination
|
 |
• Nikon has developed a new high-intensity 50W halogen light source that provides greater brightness than a conventional 100W halogen light source. Brightness is increased by approximately 20 to 40% with objective magnifications of 50x and higher. This new light source consumes lower electrical power and generates very little heat, greatly reducing focus drift resulting from light source heat.
• - Improved body shape realizes higher robustness. Due to newly designed stage mount, the LV100V POL achieves double rigidity compared to the conventional model.
- Nosepiece comes with a DIN standard compensator slot. - All five objectives on the nosepiece are centerable.
- Uses CFI60 optics, realizing both high N.A. and long working distance.
- Clamp-type focusing mechanism makes for easy, safe sample exchange.
|
|
| Accomplishes advanced polarizing microscopy under both diascopic and episcopic illuminationThese
|
| Industry-acclaimed CFI60 optics objectives |
 |
Both diascopic and episcopic polarizing observations are possible by mounting the LV-UEPI universal epi-illuminator. Switching the illumination technique is a simple operation. The epi-illuminator uses the same lamphouse as the diascopic illuminator, with the 12V-50W lamp as standard, which provides brighter illumination than a conventional 100W lamp. With an optional universal-type nosepiece and DIC accessories including objectives, episcopic differential interference contrast (DIC) microscopy is also possible.
|
|
 |
• Nikon’s proprietary infinity optics-the CFI60 system-successfully deliver long working distances and high numerical apertures and produce tack-sharp aberration-free images regardless of magnification. The new CFI LU Plan Fluor EPI P objective series uses eco-glass that is manufactured with no harmful substances such as lead and arsenic, enabling an environmentally conscious design.
|
|
| Bertrand Lens Incorporated into Design of Intermediate Tube
|
| Vibration Resistant Stage
|
 |
The Bertrand lens enables both the observation and capture of conoscopic and orthoscopic images. The Bertrand lens is also focusable and centerable.
|
|
 |
The large sized circular stage is supported near the optical axis and incorporates steal cross roller guides making the stage twice as stable and durable as conventional models. The stage is also extremely accurate, centerable to the optical axis, and provides click-stops at 45° increments. Nosepiece comes with a DIN standard compensator slot to accept various compensators for advanced quantitative measurements. All five objectives are centerable.
|
|
