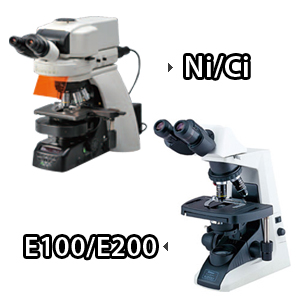

Upright Microscope ECLIPSE Ni series Feel the evolution
The Ni series, the ultimate in upright biological microscope evolution, supports bioscience studies with enhanced basic performance and flexible system expandability.
The newly developed CFI Plan Apochromat λ (lambda) series objectives are the key to the series’ optical performance. Nano Crystal Coat, with its ultra low refractive index, is employed for the first time in microscope objectives, providing brighter, high-resolution and high-contrast microscopy images.
Nikon’s proprietary stratum structure, used and highly acclaimed for inverted research microscopes, is now incorporated in an upright microscope, allowing a combination of components to be installed. Applications using laser and fluorescent proteins, such as Kaede and PA-GFP, are possible with the addition of a two-tiered fluorescent unit and a photoactivation unit.
The Ni series transcends the concept of conventional upright microscopes and expands the possibilities of advanced research in fields such as bioscience and medicine.
System expandability
Nikon’s proprietary stratum structure enables efficient system construction.
The numerous accessories can be custom combined depending upon application. Optical performance
CFI Plan Apochromat λ objectives with chromatic aberration correction and high transmission throughout a broad range of wavelengths
Objectives with improved transmission in near IR wavelength range for multiphoton excitation imaging Design
3D ergo design combines functionality with sophistication. Operability
Ni-E: Motorized model with automatic changeover of observation methods and adjustment of microscope accessories.
Ni-U: Manual model with some motorized options.
Most microscope controls can be operated with easy-to-reach buttons on the front of the Ni-E.
Ci
Upright Microscope ECLIPSE Ci series Feel the evolution
Nikon developed the clinical and laboratory microscope ECLIPSE Ci series to meet the demands of a microscope that provides comfortable posture during observation and simple set-up, such as magnification switching, light intensity reproduction and image capturing. With its small footprint, the Ci series delivers compact and space-saving observation conditions. The highly-evolved Ci series microscopes enable routine analysis with more comfort and greater
Eco Friendly
Eco-illumination (Ci-E/Ci-L)
The newly developed high luminescent LED is a low power consumption eco-friendly light source that produces evenly distributed illumination and reduces the cost and effort of lamp replacement thanks to its long-life.
Ceramic-coated stage
The stage is coated with high durability scratch-resistant coating
Ergonomic
Ergonomic binocular tube
Eyelevel riser
Eye-point height can be adjusted to suit your natural posture and increases flexibility for multi-users of different heights.
Stage handle with height adjustment
Smooth stage movement is possible in a comfortable hand position.
Lower stage positioning
Lower stage height using the nosepiece spacer for easy specimen exchange.
Ergonomic
Image capture button
One simple click of the button during observation enables you to capture your specimen image with the Digital Sight camera.
Motorized magnification change (Ci-E)
Magnification can be switched with one button control during observation, which automatically memorizes and reproduces user-defined light intensity.
Camera control unit DS-L3
The DS-L3’s touch panel allows you to easily set and control your cameras as well as take simple measurements. It is also possible to switch the Ci-E’s objective lenses.
Versatile
Flexible observation methods
The high-intensity Eco-illumination and accessories enable you to perform phase contrast, darkfield and simple polarizing microscopy.
Image sharing
The live image can be displayed on the DS-L3 monitor or via a projector. Simultaneous observation on networked PCs is also possible.
E100
High-quality images with newly developed bright LED illumination and time-proven CFI optical system
Features newly developed high-intensity LED illumination, providing uniform brightness in the entire field of view. A halogen illumination model is also available. Nikon's infinity corrected optics, designed especially for the ECLIPSE E100 microscope, use state-of-the-art technology to produce outstanding performance. Nikon's CFI* optics achieve flat, sharp images that minimize distortion to the maximum. Colorless transparent specimens can be observed with phase contrast observation. Featuring a simple and easy-to-use design for beginners, strong rigidity to ensure high accuracy and a long life, and an easy-to-store structure, the ECLIPSE E100 is the perfect choice for a variety of purposes, including educational and routine laboratory research.
High-intensity LED Eco-illumination
Either a binocular tube or a trinocular tube to which a digital camera can be attached can be selected. Both tubes have an eyepiece lens inclination of 30°, which allows for comfortable viewing.
Plan series objective lenses for flat images
The dedicated Plan series 4x, 10x, 20x, 40x, 60x, 100x (Oil) objective lenses feature superior image flatness. Chromatic aberration and field curvature are corrected over the entire field of view.
Trinocular eyepiece tube allows image capturing
Either a binocular tube or a trinocular tube to which a digital camera can be attached can be selected. Both tubes have an eyepiece lens inclination of 30°, which allows for comfortable viewing.
coaxial coarse/fine focus knob
The coaxial coarse/fine focus knob and the stage handle are located equidistant from the operator, so comfortable operation in a natural posture is possible even during a prolonged period of observation. The torque of the coarse focus knob is adjustable. Comparison of the positions of the stage handle and focus control knob
Phase contrast attachment
With an optional condenser, objectives and sliders dedicated for phase contrast and darkfield observation, even an unstained specimen that is colorless and transparent can be observed with clear contrast.
Condenser with position guide markings
The condenser comes with an aperture diaphragm with position guide markings for each objective magnification to make operations quick and easy.
Easy halogen lamp replacement
The halogen illumination model features a powerful 6V20W halogen lamp that is adjustable up to 6 V for convenient illumination control. Replacing the lamp is easy and trouble-free.
Smooth rotation quadruple nosepiece
- The high-quality revolving nosepiece has a click-stop mechanism. A knurled elastic covered grip provides easy rotation and eliminates the need to touch the objectives.
Double-plate mechanical stage
- A built-in double-plate mechanical stage provides smooth XY dual travel control. The large, flat surface facilitates easy specimen handling.
Anti-mold design, Cord hanger and storage case
E200
Features exceptionally bright and uniform LED illumination and Nikon's high-quality optics. Ergonomic and anti-mold design ensures years of comfortable and stable use.
With the ECLIPSE E200, Nikon has designed a simple and easy-to-use system that reduces fatigue from use over long periods. With a robust structure and anti-mold design, the ECLIPSE E200 offers high quality and accuracy that can be retained for years even in hot and humid environments.
The ECLIPSE E200 offers exceptional operability and durability, and high-quality images. It can be used for various purposes, such as educational, clinical laboratory use and basic research.
High-intensity LED Eco-illumination
The newly developed Eco-illumination provides enough brightness for phase contrast observation. With a fly-eye lens in the illuminator, uniform brightness is provided in the entire field of view. Using environmentally friendly long-life LEDs, Eco-illumination boasts a long lifetime of 60,000 hours and reduces the need for frequent lamp replacement. A halogen illumination model is also available
Crystal-clear image, thanks to CFI60 optics
CFI60 optics combine Nikon's renowned CF optics with infinity optics to produce breathtakingly sharp and clear image hitherto only available with more expensive models, while providing longer. The E200 provides a wide selection of objectives to choose from, including the CFI E Plan Achromat objectives specially developed for the E200 in addition to other higher-grade ECLIPSE series objectives.
Eyepiece tube
The eyepoint height can be raised 34 mm when interpupillary distance is 64 mm by simply swinging the front part of the eyepiece tube up 180°..
A wider field of view
The E200's eyepieces feature a wider field of view for a microscope of this class and are available in 10x (F.O.V. 20) and 15x (F.O.V. 12) types.
Simple operation aided by refocusing stage and upper limit stopper
Supports a wide range of microscope applications
Camera compatibility
A digital camera can be attached when the trinocular eyepiece tube is used.
With a 4x objective lens, the image may show uneven illumination depending on the camera used.
A digital camera can be attached when the trinocular eyepiece tube is used.
- By using anti-mold paint and sealing anti-mold agent inside, the E200 is designed for use even in hot and humid environments.
