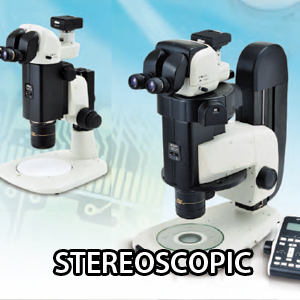

| SMZ25/18
|
 |
 World's highest zoom ratio of 25:1 for a range from 0.63X to 15.75X
Distortion has been reduced and chromatic aberration corrected to a high degree, resulting in stereoscopic images that appear natural-looking right out to the periphery.
As of January 2000 for a zoom ratio in stereoscopic microscopes (Patent pending) |
|
| SMZ1000
|
 |
Employs high magnification (0.8 - 8X) and high zoom ratio (10X zoom), allowing observations in a wide range of total magnification from 4X to 480X
The Plan Apo 1X objective with high NA of 0.1 and high resolving power of 300 lines/mm is used.
Total magnification depends on the combination of eyepiece and objective used.
|
|
| SMZ800
|
 |
Standard binocular eyepiece tube is inclined 20° for observation in a natural posture with a straight back.
Ergonomic objective has been newly developed so that the eye level can be continuously adjusted without affecting the magnification and working distance.
You have the option of using a wide variety of accessories designed for Nikon's stereoscopic microscopes. |
|
| SMZ745T/SMZ745
|
 |
The SMZ745/745T boasts a 7.5x zoom that incorporates the Greenough optical system. The zoom range of 0.67x to 5x provides a broad observation range. As well as high zoom ratio and magnification, the SMZ745/745T offers a long 115 mm working distance.
The SMZ745T incorporates an optical path switching lever that enables easy switchover between eyepiece and camera. A Nikon Digital Sight series camera can be attached.
The airtight, anti-mold, anti-electrostatic design makes the SMZ745 suitable for use in a range of working environments.
The SMZ745T has an anti-mold, anti-electrostatic design |
|
| SMZ445/SMZ460
|
 |
Compact design with ease-of-use and high optical performance
Lightweight optics thanks to the use of porro-mirror
ESD protection guards against electrostatic damage to sample
The SMZ445 has a 45°eyepiece tube inclination, and the SMZ460 has a 60° eyepiece tube inclination, which is ideal for embedded use. |
|
| SMZ-2
|
 |
Diopter of both eyes can be adjusted individually, providing a clear image when zooming.
Twin zooming objective optical system maintains focus when magnification is changed. Focus point movement and magnification difference between eyes are minimal.
Compact design with horizontally positioned zooming ring (rotation: 90º)
Eyepiece inclination of 45° for comfortable observation |
|
| SMZ-5
|
 |
Optical axis passes through the middle of the lens, eliminating chromatic aberration and providing sharp images.
Objective has fixed magnification of 2x. Total magnification ranges from 10x to 60x depending on eyepiece and auxiliary objective used.
Focal plane is positioned on distinct vision, eliminating eye fatigue during lengthy use.
45° eyepiece tube inclination is ideal for use on a desk or other work surface.
|
|
